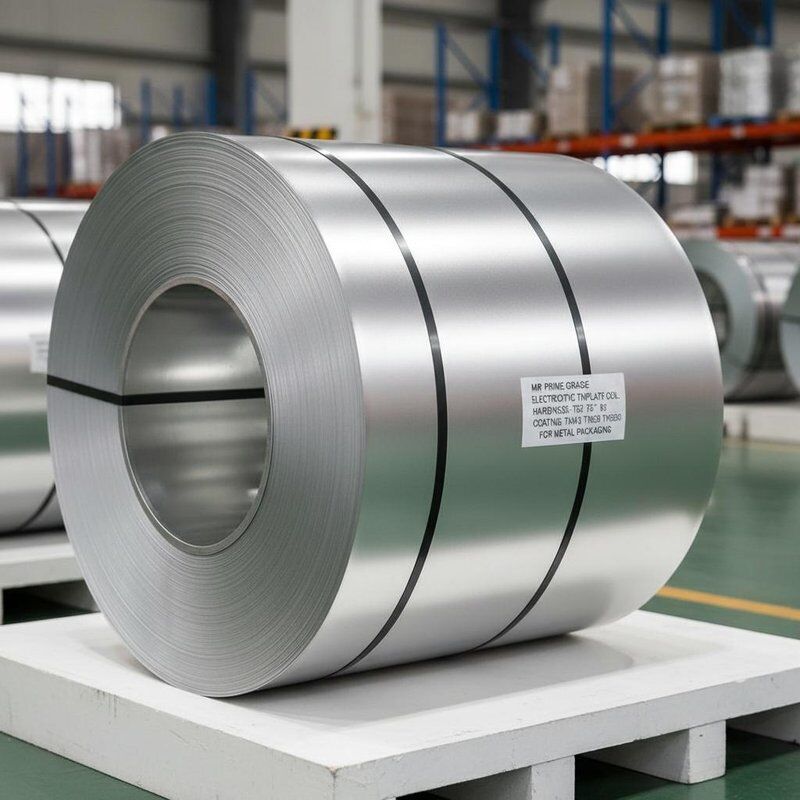

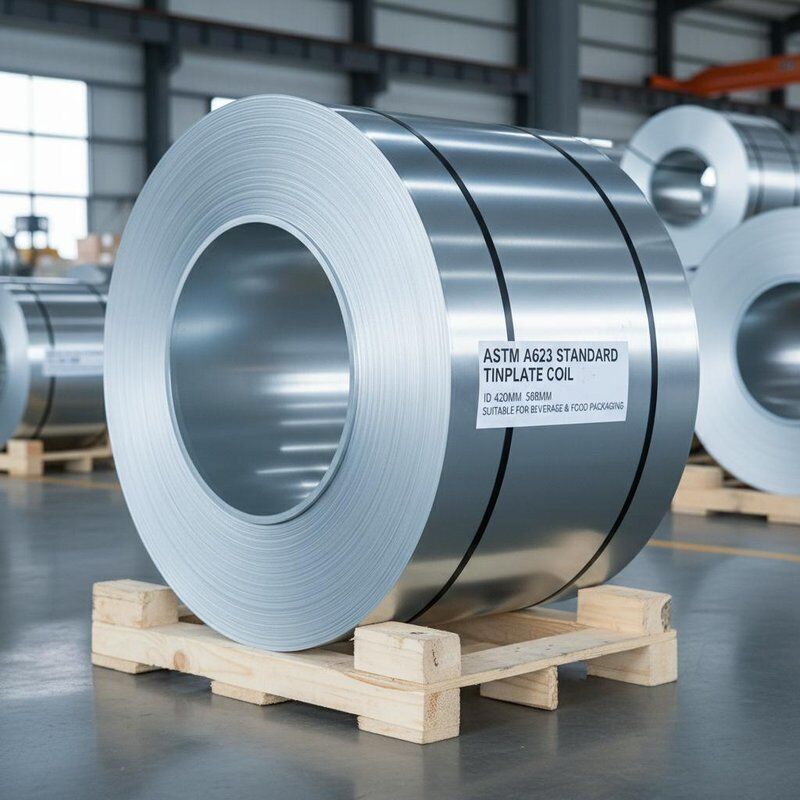

MR Prime Grade Electrolytic Tinplate Coil with T52 T57 T61 Hardness and TH415 TH520 TH550 Coating for Metal Packaging

Menşe yeri:

Çin

Marka adı:

QuanJiang

Sertifika:

MILL CERTIFICATE

Model numarası:

Bay

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Genişlik:

600~1050mm

Sertlik:

TH50 TH52 TH55 TH57 TH61 TH65 T550 T580 T620

Kalınlık:

0.16mm-0.45mm

Kalay Kaplama:

1,1/1,1, 2,8/2,8, 5,6/5,6, 8,4/5,6, 11,2/11,2

Yüzey İşlemi:

Parlak, Taş, Mat, Gümüş, Pürüzlü Taş

Bobin ağırlığı:

3~10 MT

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

25ton

Fiyat

Negotiated

Ambalaj bilgileri

Ahşap palet, köşe korumalı denize elverişli standart. Müşterinin gereksinimlerine göre sayfa veya bo

Teslim süresi

Müzakere edilmiş

Ödeme koşulları

T/T

Yetenek temini

50000mt/ay

İLGİLİ ÜRÜNLER

video

Corrosion Resistant Weldable 0.18mm Thick Tin Sheets and Tinplate for Food Cans

En İyi Fiyatı Alın

video

Elektrolitik Teneke Plakası Korozyona Direnci DR-8 DR-9 ve Gıda Konserveleri için 0.15-0.5mm Kalınlığı

En İyi Fiyatı Alın

video

Gıda ve içecek konserveleri için özelleştirilebilir kalınlıkta korozyona ve paslanmaya karşı dayanıklı teneke bobinleri

En İyi Fiyatı Alın

video

Gıda sınıfı teneke levha, gıdaların güvenli depolanması için korozyona dayanıklı ve paslanmaya karşı özelliklere sahiptir

En İyi Fiyatı Alın

Bize Ulaşın

+8618267212962-021-56922400

quanye@spte.cn

+86-021-56922411

Şimdi İletişime Geçin

Ürün Açıklaması

MR Prime Electrolytic Tinplate Coil T52 T57 T61 TH415 TH520 TH550 SPTE TFS

Product Overview

MR first grade prime electrolytic tinplate SPTE/TFS is manufactured using advanced electrolytic deposition processes. Tinplate consists of a central steel core that is cleaned and passed through electrolyte tanks where tin is deposited on both sides. The strip is then heated using high-frequency electric induction coils, causing the tin coating to melt and form a lustrous, protective surface with a coating thickness of approximately 0.00003 inch (0.00076 millimeter) on each side.

Key Features

Excellent Paintability & Printability: Superior printing results achieved with various lacquers and inks
Excellent Solderability & Weldability: Ideal for manufacturing various types of cans through soldering or welding processes
Excellent Formability & Strength: Appropriate formability obtained by selecting proper temper grades for various applications
Excellent Corrosion Resistance: Optimal protection against container contents through proper coating weight selection
Beautiful Appearance: Characterized by beautiful metallic luster with various surface roughness options

Technical Specifications

Parameter	Specification
Steel Type	Hot sale tinplate / SPTE coating weight 1.1/1.1
Temper (BA & CA)	T1 - T5 BA and CA both
Coating	1.1~11.2g/m²
Thickness and Tolerance	0.15~0.50mm (Tolerance: ±0.01 mm)
Width & Tolerance	600~1050mm (Tolerance: 0~3mm)
Cut Length & Tolerance	650~1200mm (Tolerance: 0~3mm) or coils
Coil Inside Diameter	420/508mm
Coil Weight	3~10 MT
Passivation	311
Oiling	DOS
Surface Finish	Bright, Stone, Silver, Matte
Packaging	Seaworthy Standard with wooden pallet
Standards Available	GB/T2520, JIS G3303, ASTM A623M & EN10202

Temper Grades and Applications

Temper	Hardness Guarantee (HR30T)	Applications
T1	49±3	Nozzles, spouts, closures, and deep drawing
T2	52±3	Rings and plugs, pie pans, closures, shallow drawn and specialized can parts
T2.5	55±3	Battery can bodies, small can ends and bodies
T3	57±3	Can ends and bodies, large diameter closures, crown caps
T4	61±3	Can ends and bodies, crown caps and small screw closures
T5	65±3	Can ends and bodies for non corrosive products
DR-8	73±3	Small diameter round can bodies and ends

Surface Finish Options

Surface Finish	Nominal Surface Roughness (μm Ra)	Characteristic
Bright Finish	≤0.35	Glazed surface obtained after melting treatment with extremely fine rubstone figures
Stone Finish	0.25~0.60	Glazed surface featuring certain rubstone figures after melting treatment
Silver Finish	0.50~1.00	Glazed surface with rough matt surface after melting treatment
Matte Finish	0.80~2.50	Matt surface without melting treatment

Product Applications

Classification	Main Applications
Food Cans	Cans for preserved food, preserved fishery and agricultural products, etc.
Cans for Beverages	Juice, carbonated soft drinks, other beverages, etc.
General Cans	4L cans for automobile oil, mechanical oil, etc.
18L Cans	Industrial containers for paint and oils
Pail Cans	Industrial containers for paint and oils
Aerosol Cans	Cosmetics, butane gas, pesticide, etc.
Crown	Crown caps for liquor, soft drink bottle caps
Electronic Components	Electronic items such as TV, tuner cases, etc.
Electronic Jar	Electronic items such as electric cookers, etc.
Others	Shell of batteries, toys, stationeries, etc.

Packaging Specifications

For Coils/Strips: Anti-rust paper + metal cover + corner protected + wood skid. Loaded into 20 feet container with maximum weight 27 tons.

For Sheets: Thin plastic film + rust-proof paper + metal cover + metal angles + straps + pallet. Loaded in 20 feet container with maximum weight 27 tons.

Warehouse Facilities

Tinplate coil warehouse NO.7

Tinplate coil warehouse NO.3

Application Examples

Tinplate is applied to various containers such as food, beverage, artistic containers and electric parts. TFS applications benefit from excellent paint adhesion, making it the most suitable material for food cans, crowns, artistic cans and general cans with painting.

Quality Certification

Frequently Asked Questions

Information Required with Orders and Inquiries:

Orders and inquiries shall be accompanied by the following information:

Product name and grade
Coating and mass (for Tinplate only), temper grade, finish, and product size
Rolling direction
Quantity
Application and delivery date
Number of sheets per packaging (for cut to length products)
Inside diameter and maximum acceptable unit coil weight (for coils products)
Film type, color, contents, and other details of use and environment
Other special requirements, if any

Testing Equipment

Our facility is equipped with advanced testing equipment to ensure product quality and compliance with industry standards.
